Motorised Chassis 6 axis 41 mm

86,00 EUR

incl. 19% tax excl. Shipping costs

Description

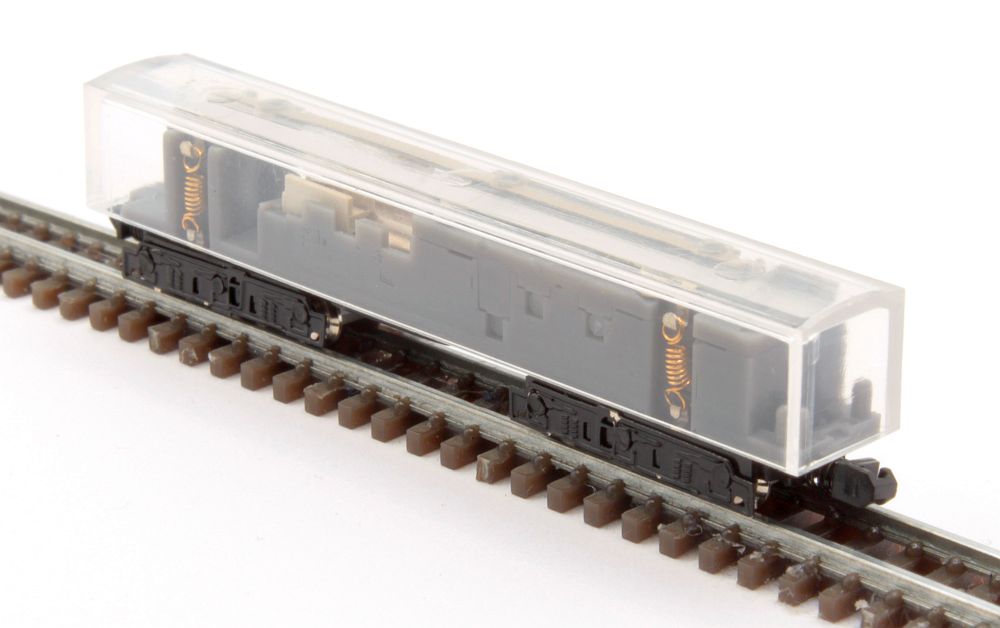

Motorised bogie with three axles each in two bogies and a transparent car body for self-builds.
In this bogie, one bogie is driven by two axles.

Length over coupling	45,0 mm
Length of car body outside	41,4 mm
Length of car body inside	40 mm
Height of outer body	6,2 mm
Height of car body inside	5,5 mm
Height of wagon body above top of rail	9,5 mm
Width of outer car body	6,2 mm
Width of car body inside	5,3 mm
Distance between centre of bogie	22,8 mm
Centre distance in bogie	4,7 mm
Wheel diameter	2,0 mm
