Product No.:
TG-022
Shipping time:
3-5 days 3-5 days (abroad may vary)
80,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

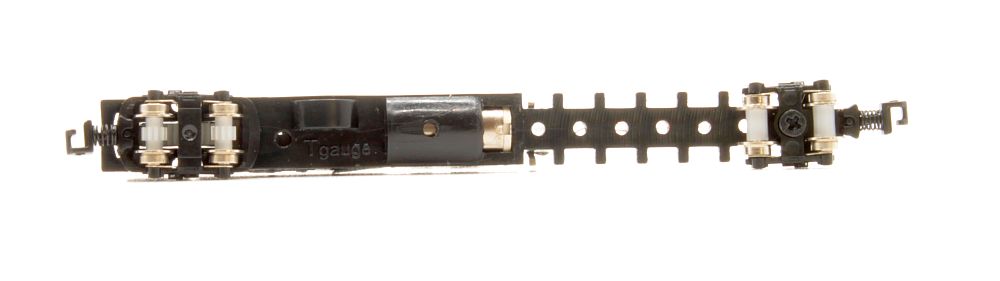

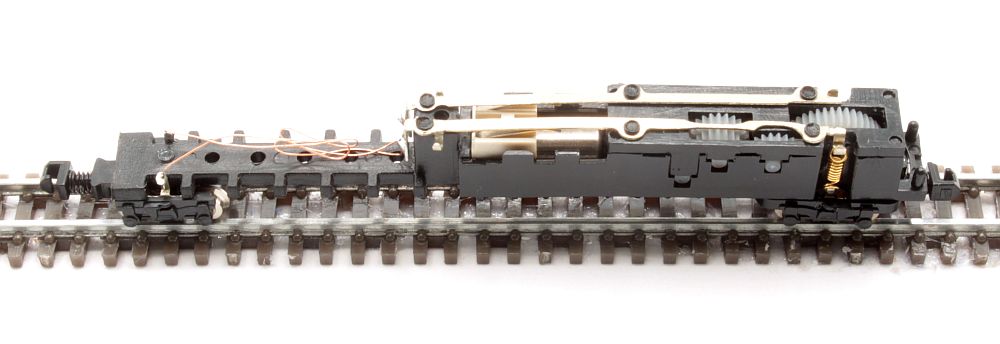

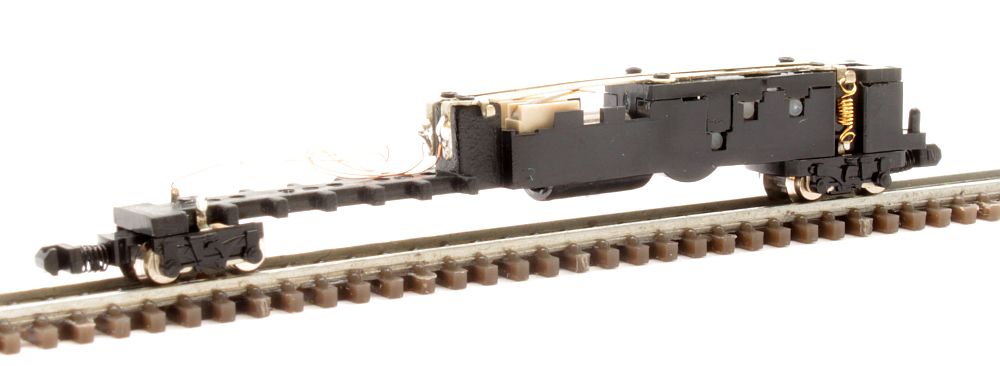

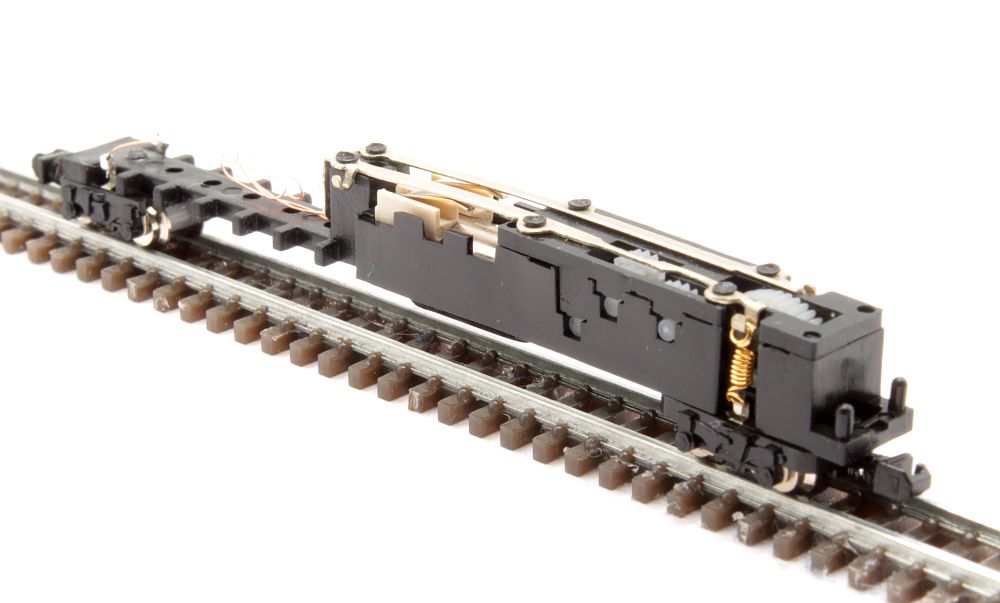

Adjustable motorised running gear with two bogies. Two powered axles are mounted in one bogie.
Length over coupler                          59.0 mm
Height of bogie above top of rail         8.5 mm
Chassis width                                     5.2 mm
Distance between centre of bogie    41.5 mm
Centre distance in bogie                    5.0 mm
Wheel diameter                                  2.0 mm
All length dimensions can be shortened in 6 steps of 2.9 mm each. Maximum shortening 17.4 mm
